Description

An AC Panel Meter is an essential measuring device used to accurately display key electrical parameters such as AC voltage, current, frequency, power, and power factor. Designed for real-time monitoring, these meters are available in compact sizes like 96×96 mm, 72×72 mm, and 48×96 mm, offering durability, high visibility, and easy installation in control panels. With options for digital or analog display and support for both single-phase and three-phase systems, they help maintain the efficiency and safety of AC power networks.

Application's

AC Panel Meters are widely used in industrial automation panels, power distribution boards, diesel generator sets, commercial electrical systems, and utility substations. They play a crucial role in load monitoring, energy management, fault detection, and system diagnostics, making them indispensable in both commercial and heavy-duty industrial environments.

AC Basic Series

KEW Wave Series AC Voltmeter

Display :7-Segment 4-Digit LED Display
Range: 0-750V AC
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 0.5-2
Size(mm): 96*96, 72*72, 48*96 and customisable

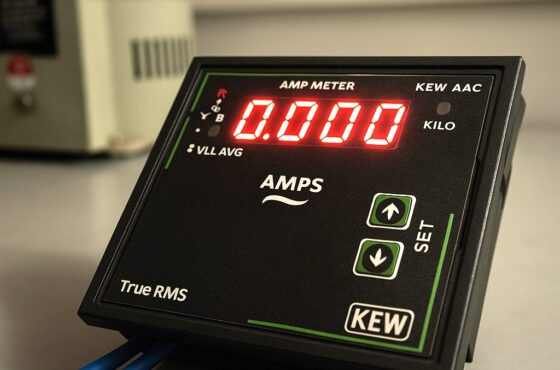

KEW Wave Series AC Ammeter

Display: 7-Segment 4-Digit LED Display
Range: 0.2-750 mA, 0-30A (Direct), and CT Operated (CT Primary: 1A to 50kA - CT Secondary: 0.5A to 5A)
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 0.5-2
Size(mm): 96*96, 72*72, 48*96 and customisable

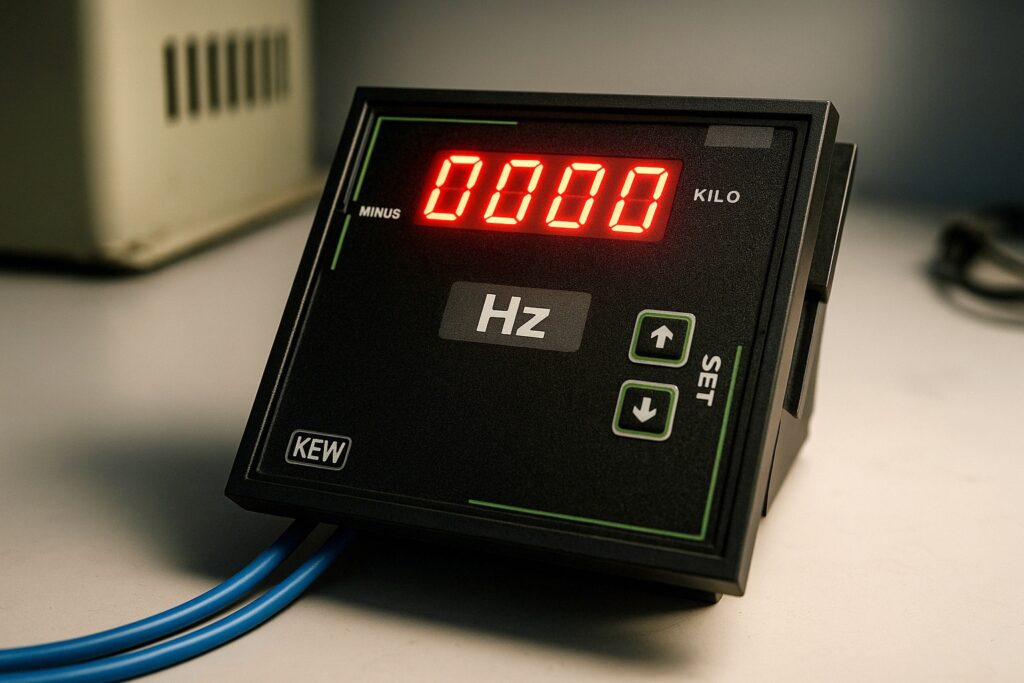

KEW Wave Series AC Frequency Meter

Display 7-Segment 4-Digit LED Display
Range: 40-615 Hz
Input Volatge Range: 0-750V
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 0.2
Size(mm): 96*96, 72*72, 48*96 and customisable

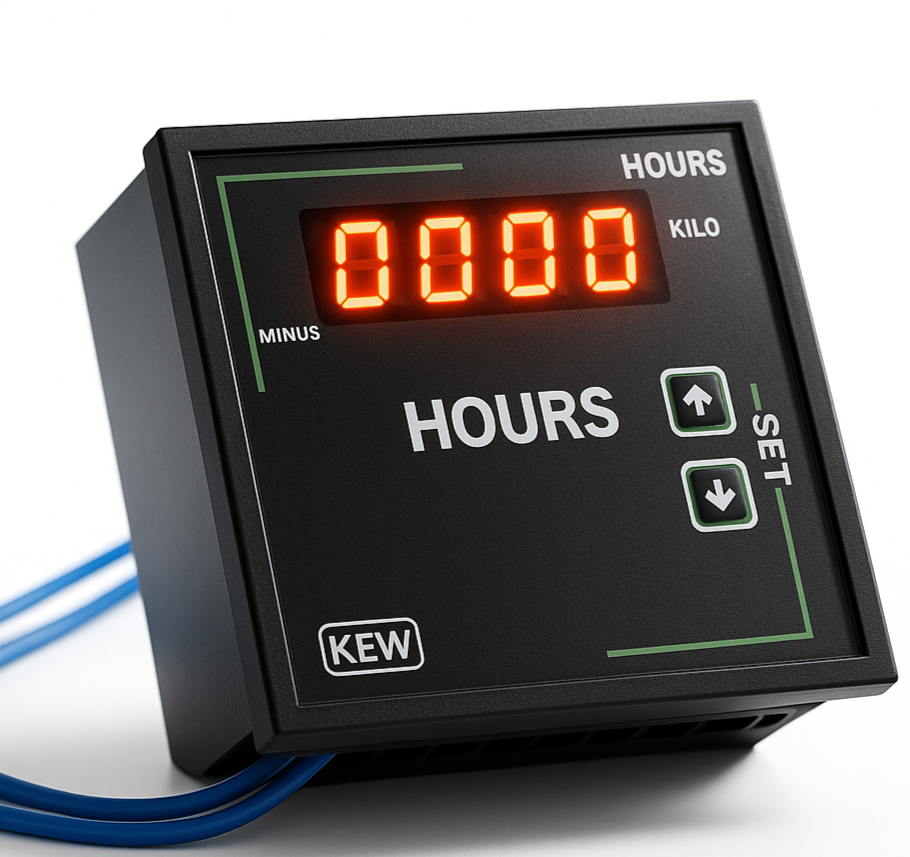

KEW Wave Series AC Hour Phase Meter

Display : 7-Segment 4-Digit LED Display
Range: 1-1000 Hours
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 1sec
Size(mm): 96*96, 72*72, 48*96 and customisable

KEW Wave Series AC Power Factor Meter

Display: 7-Segment 4-Digit LED Display
Range: 0.100 to 1.00 PF
Input Voltage Range: 0-750V(Direct)
Input Current Range: 0-10A(Direct)
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 0.5
Size(mm): 96*96 and customisable

AC VAF Series

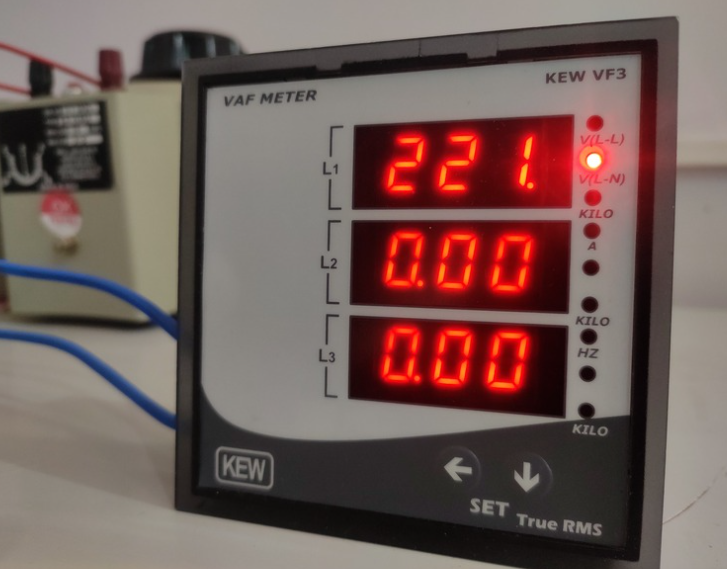

KEW Wave Series VAF Meter

Display: 7-Segment 4-Digit LED Display
Range: 0.100 to 1.00 PF
Input Voltage Range: 0-750V(Direct)
Input Current Range: 0-10A(Direct)
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 0.5
Size(mm): 96*96 and customisable

AC Energy Meter Series

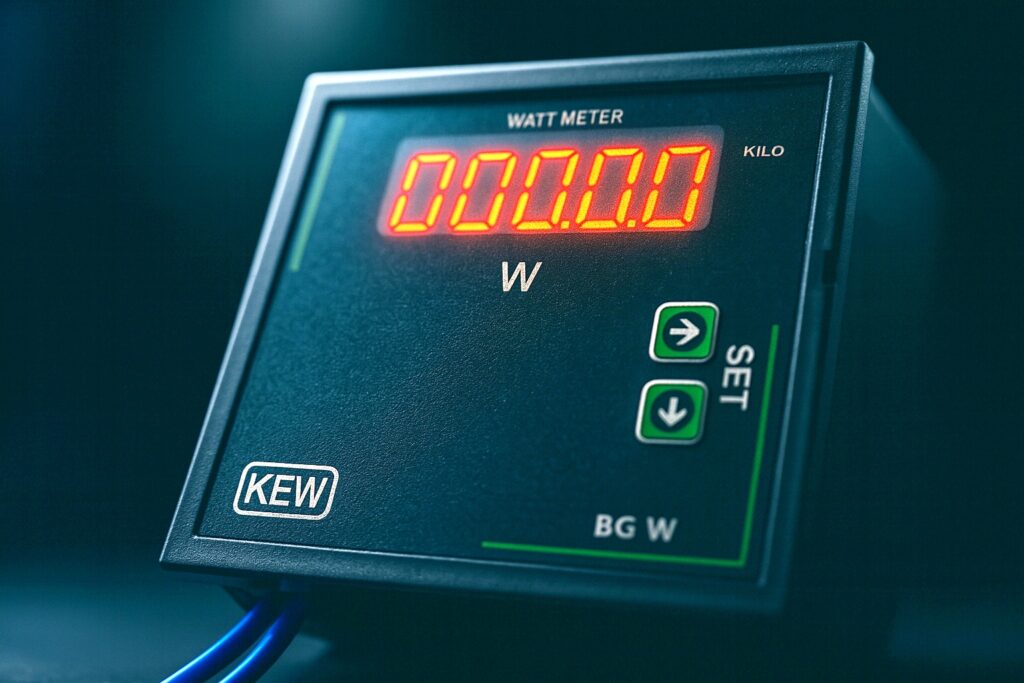

AC Watt & KiloWatt Meter

Display's : 7-Segment 4-Digit LED Display
Measure : Wattage in W and KW
Energy Range: 0- 9999 W (Decimal for KW)
Input Current Range: 0-10A (Direct), and CT Operated (CT Primary: 1A to 50kA - CT Secondary: 0.5A to 5A)
Input Voltage Range: 0-600V(direct) and PT Operated ( PT Primary: 50-500kV - PT Secondary: 50 to 500V)
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 0.5 - 1
Size(mm): 96*96 and customisable.

AC Single Source Energy Meter

Display : 7-Segment 4-Digit LED Display
Measure: V, A,PF, Hz, KW, KVA, KVAr, KWh, KVAh and KVArh
Menu Option : Auto and Manual Scolling
Ranges of measurements in detail check the product description
Input Current Range: 0-10A (Direct), and CT Operated (CT Primary: 1A to 50kA - CT Secondary: 0.5A to 5A)
Input Voltage Range: 0-600V(direct) and PT Operated ( PT Primary: 50-500kV - PT Secondary: 50 to 500V)
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 0.5-1
Size(mm): 96*96 and customisable

AC Dual Source Energy Meter

Display : 7-Segment 4-Digit LED Display
Measure: V, A,PF, Hz, KW, KVA, KVAr, KWh, KVAh and KVArh
Menu Option : Auto and Manual Scolling
Ranges of measurements in detail check the product description
Input Current Range: 0-10A (Direct), and CT Operated (CT Primary: 1A to 50kA - CT Secondary: 0.5A to 5A)
Input Voltage Range: 0-600V(direct) and PT Operated ( PT Primary: 50-500kV - PT Secondary: 50 to 500V)
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 0.5-1
Size(mm): 96*96 and customisable

AC Multifunction Series

AC Three Phase Multifunction Meter

Display's : 7-Segment 4-Digit LED Display
Measure : Wattage in W and KW
Energy Range: 0- 9999 W (Decimal for KW)
Input Current Range: 0-10A (Direct), and CT Operated (CT Primary: 1A to 50kA - CT Secondary: 0.5A to 5A)
Input Voltage Range: 0-600V(direct) and PT Operated ( PT Primary: 50-500kV - PT Secondary: 50 to 500V)
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 0.5 - 1
Size(mm): 96*96 and customisable.

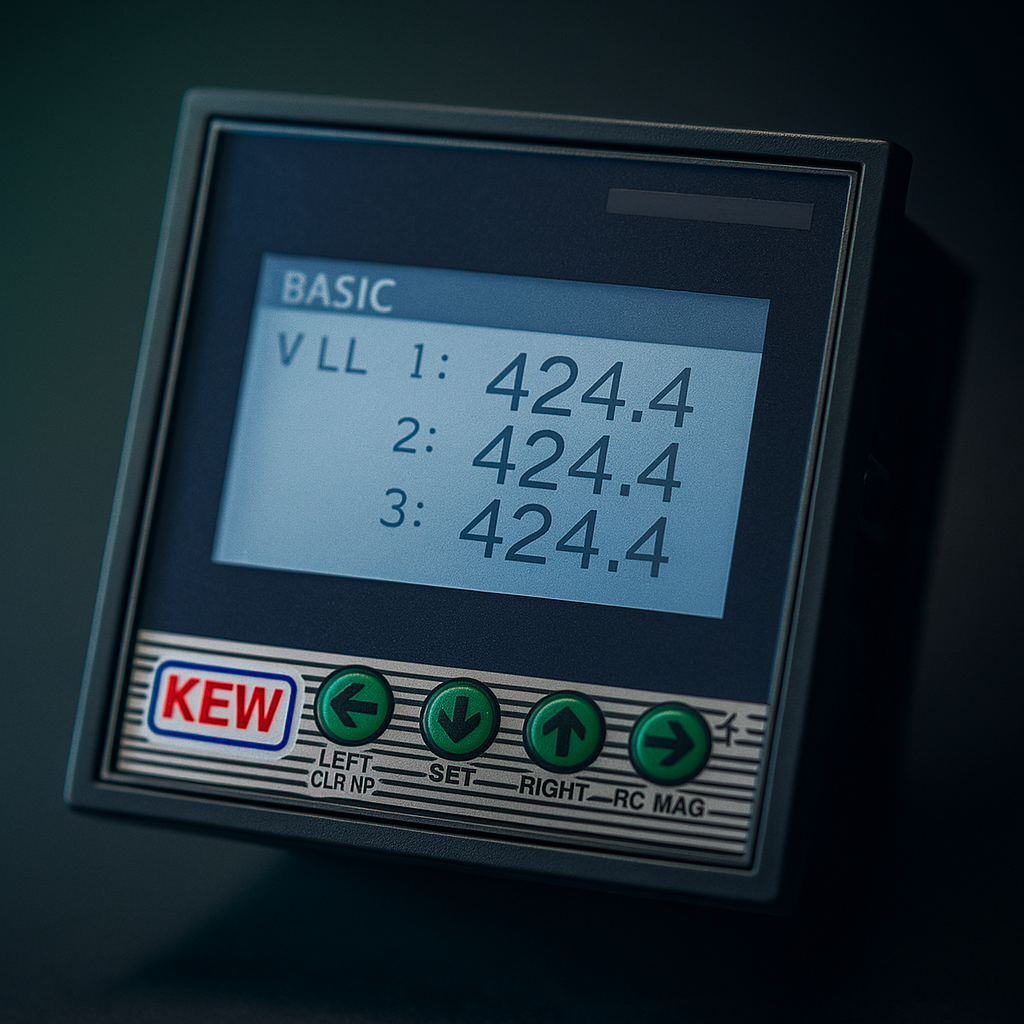

AC LCD Multifunction Meter

Display : 7-Segment 4-Digit LED Display
Measure: V, A,PF, Hz, KW, KVA, KVAr, KWh, KVAh and KVArh
Menu Option : Auto and Manual Scolling
Ranges of measurements in detail check the product description
Input Current Range: 0-10A (Direct), and CT Operated (CT Primary: 1A to 50kA - CT Secondary: 0.5A to 5A)
Input Voltage Range: 0-600V(direct) and PT Operated ( PT Primary: 50-500kV - PT Secondary: 50 to 500V)
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 0.5-1
Size(mm): 96*96 and customisable
