KEW Wave Series AC Hour Phase Meter

  1. Home
  2. Our Products
  3. Digital Panel Meters
  4. AC Digital Meters
  5. AC Panel Meters
  6. KEW Wave Series AC Hour Phase Meter

Single Phase

KEW-AC Hour Phase Meter

Features of KEW-AVM-IP:

  • Display: 7-Segment 4-Digit LED Display
  • Measured Parameters:
    • System Run Time in Hours and Minutes
  • Flexible Integration: Optional RS-485 communication, relay output (optional)
  • Accuracy: ±1 Second
  • Size: 96×96
Datasheet

Specification of AC Hour Phase Voltmeter

  • Auxiliary Supply: 150-300V AC, 45-270V AC/DC, 19-60V AC/DC
  • Accuracy: ±1 Second
  • VA Burden:
    • Auxiliary: < 1.5VA
  • Maximum Overload: Voltage
    1.2 Times Continuous
  • Dielectric strength: 2.5KV @50 Hz for 1
    min
  • Impulse Withstand: 3.5KV for 1.2/50 micro second
  • Display: 4 Digit 7 Seg RED LED Display
  • Digit Height: BG HM: 0.56″/14.2 mm
    SG HM & RECT HM: 0.36″/9.1 mm
  • Display Stability: With in +-1 Digit
  • Decimal Point: Auto Scrolling and Manual
  • Refresh Rate: Per 8.0ms
  • Mounting Type: Panel Mount
  • Faceplate: Polycarbonate Transparent
  • Case/Housing Material: FR-ABS Black
  • Connectors/Terminal: Nylon 666, 33%GF
  • Mounting Clamps: Sturdy, Moulded Glass filled nylon with screws
  • Working Temperature: 0 to 60 degree C
  • Storage Temperature: 0 to 55 degree C
  • IEC62052-11

Panel Cutout Dimensions

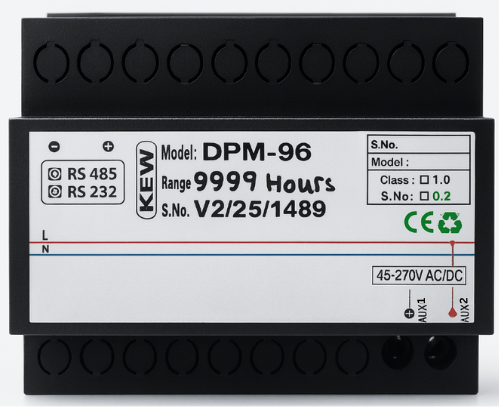

Terminal Connection

Applications and Industries where it is used

Electrical Panel

  • Where: Hour meters are used in electrical panels of generators, motors, and industrial machines.
  • Why: To record total runtime for maintenance scheduling, performance tracking, and operational cost analysis.

Building Management Systems(BMS)

  • Where: Hour meters are used in BMS panels to track the operating hours of HVAC systems, pumps, and other critical equipment.

  • Why: To schedule preventive maintenance, reduce downtime, and optimize energy management.

Generator / DG Set Panels

  • Where: Hour meters are used in Generator / DG Set panels to log the engine’s total running hours.

  • Why: To plan timely maintenance, track fuel usage, and ensure reliable generator performance.

Commercial Sub Metering / Retail Malls

  • Where: Hour meters are used in commercial sub-metering panels of retail malls to monitor usage time of shared equipment like HVAC, elevators, and lighting systems.

  • Why: To allocate operational costs fairly among tenants and support maintenance planning.

Ordering Information

Model Display Range Accuracy Aux Supply Dimensions (MM)
ACHM-BG-1Hr (96×96) 0.01 – 9999.99 Hours 1 Second 150–300V AC (TX Supply) 45–270V AC/DC 19–60V AC/DC 96×96
ACHM-SG-1Hr (72×72) Coming soon Coming soon Coming soon Coming soon
ACHM-RECT-1Hr (48×96) Coming soon Coming soon Coming soon Coming soon
