Power Factor Meter: The Unsung Hero of Electrical Efficiency
Ever wondered why your electricity bills are unexpectedlly high or why you generator runs hotter than usual? The problem might not be the power – it’s the Power Factor. And fix it , meet the game changer:POWER FACTOR METER
What Is a Power Factor Meter?
A Power Factor Meter is an electrical measuring instrument that tells you how efficiently your electrical system/design/machine is using electrical power. In a power factor meter, “efficiently” means how much of the electrical power is actually used to do useful work, like running machines or lights.
If the power factor is high, it means your system is using electricity well with little waste. A low power factor means a lot of power is wasted in things like heat or magnetic fields. So, efficiency here is about reducing power loss and making the most of the electricity supplied.
Power Factor is a measure ranging from 0 to 1 that indicates how efficiently an electrical system uses the power supplied to it. A value closer to 0 means a poor power factor, where a significant portion of the power is wasted—usually as reactive power—making the system inefficient. On the other hand, a value closer to 1 represents a good power factor, meaning the system uses most of the supplied power for real, useful work with minimal energy loss. While no system can consume all the power with zero loss, a power factor near 1 indicates maximum possible efficiency in practical terms.
Electrically, Power Factor is measured in terms of cos(ϕ), where ϕ (phi) is the phase angle between the voltage and current waveforms. It represents the ratio of Real Power to Apparent Power in an electrical system. Real Power (P) is the portion of power that performs actual, useful work and is measured in watts, while Apparent Power (S) is the total power supplied to the system, which includes both real and reactive components, measured in volt-amperes (VA).
Why Is Power Factor So Important?
A poor power factor means there’s a large phase difference between voltage and current — they are no longer in sync. In this situation, part of the electrical energy flows back and forth in the system without doing any useful work. This typically happens in systems with inductive loads like motors, transformers, and ceiling fans, or capacitive loads like long underground cables or capacitor banks.
For example:
In an induction motor, current is drawn not only to produce mechanical motion but also to build up a rotating magnetic field. Once built, that magnetic field collapses and returns energy back to the source — but this energy didn’t perform any actual work.
In a fluorescent light fixture with a ballast, energy is first stored in the magnetic core and then released — again causing a back-and-forth power flow.
Capacitive cables (e.g., long data or power lines) can store charge and discharge cyclically, causing similar energy oscillations.
As a result, the system ends up pulling more current than it actually needs to perform the real work (like running machines or lighting bulbs). This extra current increases the load on wires, transformers, and generators, causing energy losses in the form of heat — similar to a lazy worker who demands more effort (current) but delivers less output (real power).
In essence, the system looks “lazy” because it’s consuming more resources (current) to get the same job done, making it inefficient and costly to operate. A high power factor system, by contrast, uses current in perfect sync with voltage, making the most of every ampere drawn.
Problems with Low Power Factor
Higher Electricity Bills
A low power factor causes the system to draw more current for the same amount of useful power. This increased current leads to higher energy losses (I²R losses) and often results in higher billing demand, especially in commercial and industrial setups.Overloading of Cables and Transformers
Extra current flow puts additional stress on electrical infrastructure such as cables, transformers, and switchgear. This can cause premature aging or failure of equipment, and requires oversized components to handle the unnecessary load.Increased Heating in Motors and Equipment
The excessive current generates more internal heat in motors and devices, which can reduce efficiency, increase wear and tear, and ultimately shorten the lifespan of electrical machines.Penalties by Electricity Boards
Utility companies often impose penalties on consumers (especially industries) with poor power factor, as it affects grid stability and requires them to supply more capacity than necessary. Maintaining a high power factor is often a regulatory or contractual requirement.
What Does a Power Factor Meter Do?
A Power Factor Meter is an electrical measuring instrument that continuously monitors the power factor of your system in real-time. It shows the power factor value (ranging from 0 to 1) and also indicates whether the load is lagging (typically inductive, like motors) or leading (typically capacitive, like capacitor banks).
By providing this real-time data, the power factor meter helps us to :
Identify inefficiencies in your electrical system, such as excessive reactive power or poor load balancing.
Detect whether the system is lagging or leading, allowing for targeted diagnosis of the type of reactive load present.
Take corrective action, such as installing capacitor banks or power factor correction devices to bring the power factor closer to 1.
Improve energy efficiency and reduce electricity bills by minimizing wasted current and avoiding penalties from electricity boards.

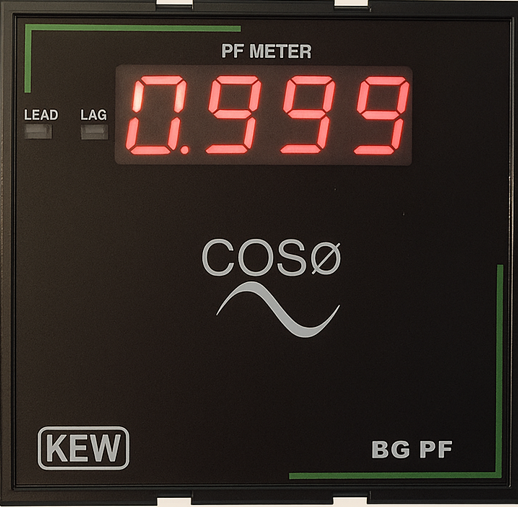

DISPLAY:
- Value range: 0.00 to 1.00
- Type: Lagging/Leaading/unity
- Format:4-digit LED(typically shows value like 0.98 or 0.95C)
Understanding Lagging - Leading-Unity Power Factor Values.
What is Lagging Power Factor?
When the current lags behind voltage, it’s called a lagging power factor usually caused by inductive loads like:
- Motors
- Transformers
- Fluorescent lighting (with chokes)
These devices create magnetic fields, which consume reactive power, causing current to lag.

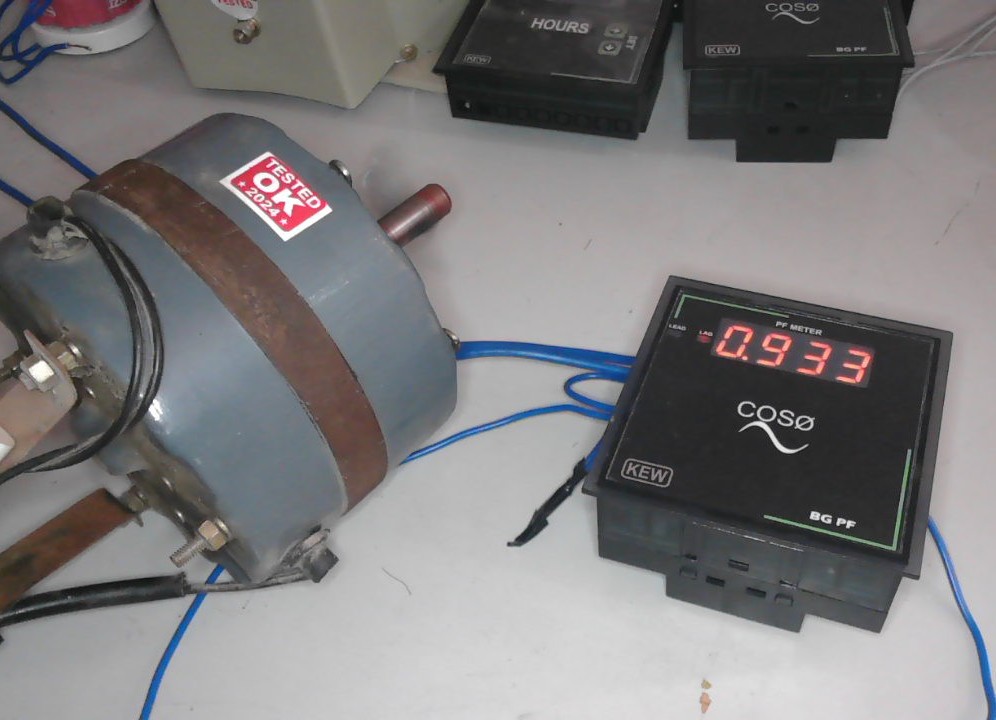

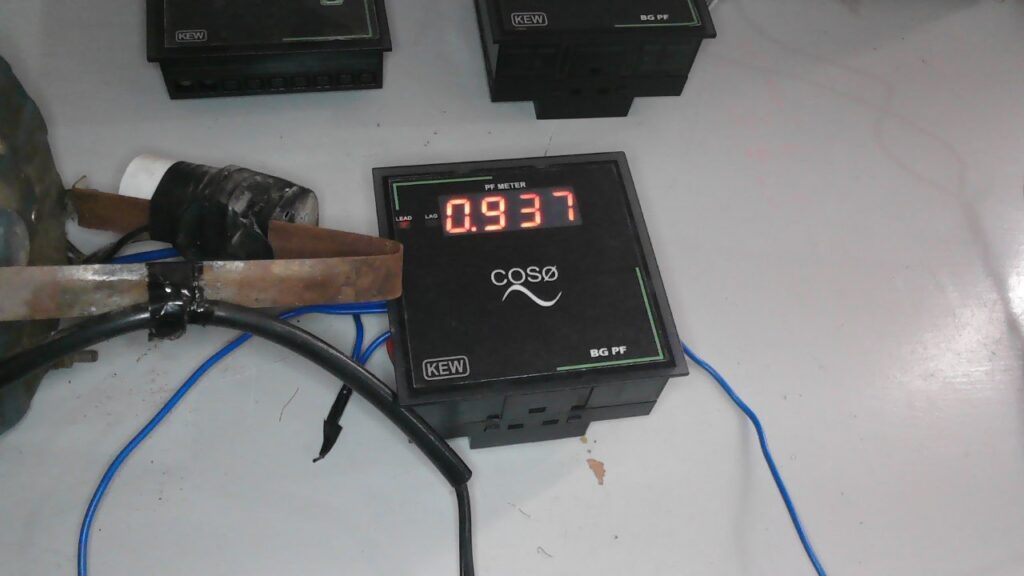

Typical Display on Meter: 0.85 L → Means PF is 0.85 and lagging (inductive system)
What is Leading Power Factor?
When the current leads the voltage, it’s called a leading power factor — generally caused by capacitive loads such as:
- Capacitor banks
- Overcorrected power systems
- Synchronous condensers
- Lightly loaded UPS systems
These push reactive power back into the system, causing current to lead.
Typical Display on Meter: 0.95 C → Means PF is 0.95 and leading (capacitive system)
What is Unity Power Factor?
When the current and voltage are perfectly in phase, the PF is 1.00 – this is called Unity.

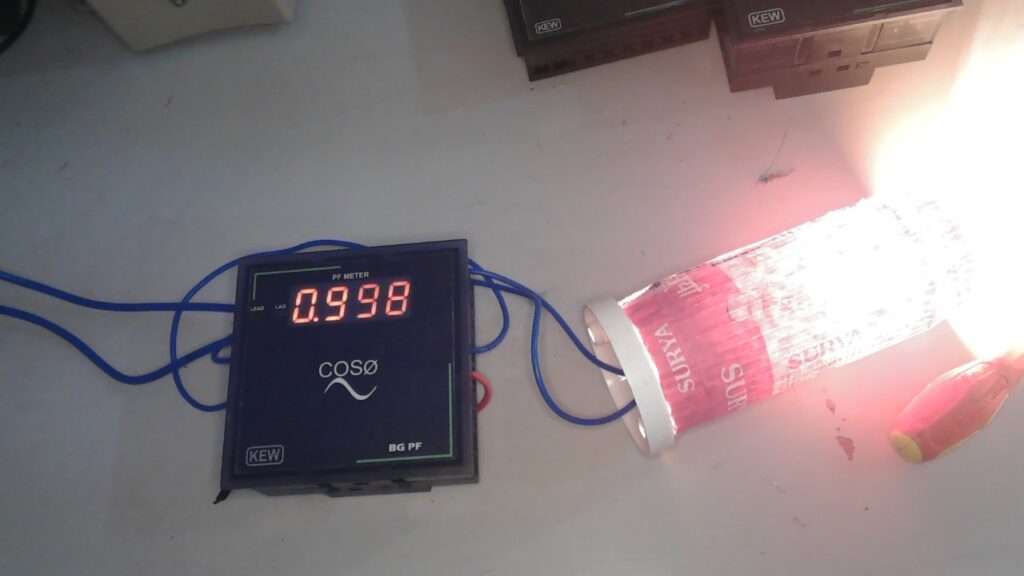

Happens with purely resistive loads like:
Incandescent bulbs
Heaters
- Electric iron or kettle
Typical Display on Meter: 1.00 or U → Perfect efficiency, no reactive power
Why Power Factor Monitoring Is Important?
- Avoid Penalties
Electricity boards often impose fines for low power factor, especially in industrial and commercial setups, as it burdens the power grid. Protect Equipment
Poor power factor leads to overheating, overloading, and voltage drops, which can damage motors, cables, and transformers over time.Boost Efficiency
A higher power factor means less current is needed to deliver the same amount of useful power, reducing I²R losses and improving overall system efficiency.Monitor System Health
Power factor acts as a health indicator for your electrical system, helping detect hidden inefficiencies or imbalanced loads early.Be Eco-Friendly
Efficient systems with high power factor consume less power from the grid, reducing your carbon footprint and promoting sustainable energy use.
- Avoid Penalties
Up Next in the Blog Series:
In the next blog, we’ll take a deep dive into the real-world use cases of Power Factor Meters — exploring how they are applied across different industrial, commercial, and utility sectors to enhance energy efficiency and reduce operational costs. We’ll also walk through practical connection examples of KEW Power Factor Meters for various types of loads, helping you understand how to deploy them effectively in your electrical setup.
