Description

DC Panel Meters are specialized instruments designed to measure and display direct current (DC) voltage and current with high accuracy.

Application's

Commonly used in battery banks, solar power systems, DC drives, and industrial control panels, these meters provide reliable real-time monitoring essential for system diagnostics and performance optimization. Built for robust industrial use, they offer durable construction and clear digital or analog readouts for critical DC applications.

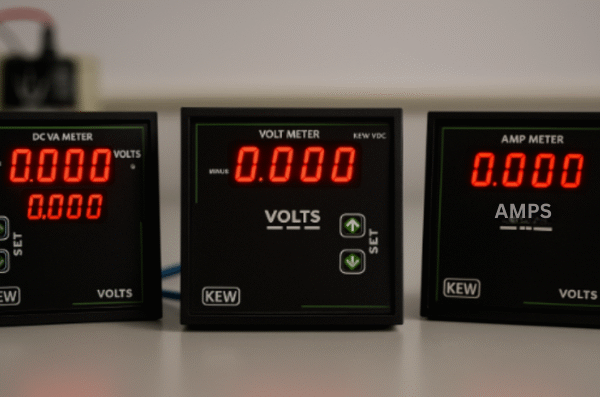

DC Digital Basic Series

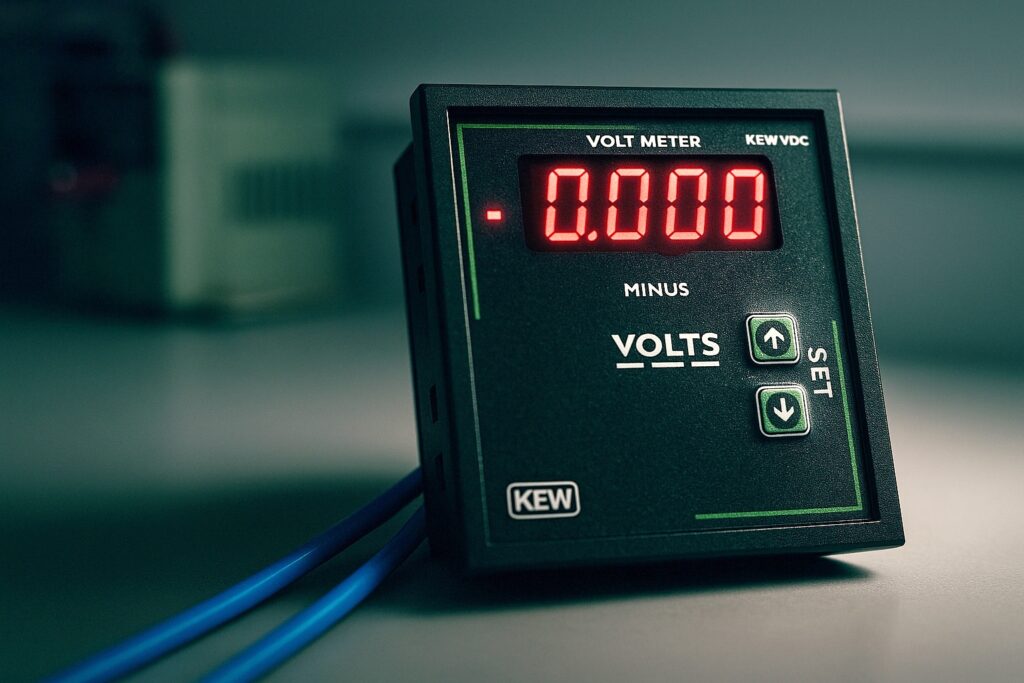

DC Voltmeter

Display :7-Segment 4-Digit LED Display
MAX Range: 0-750V DC and wide ranges
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 0.5-1
Size(mm): 96*96, 72*72, 48*96 and customisable

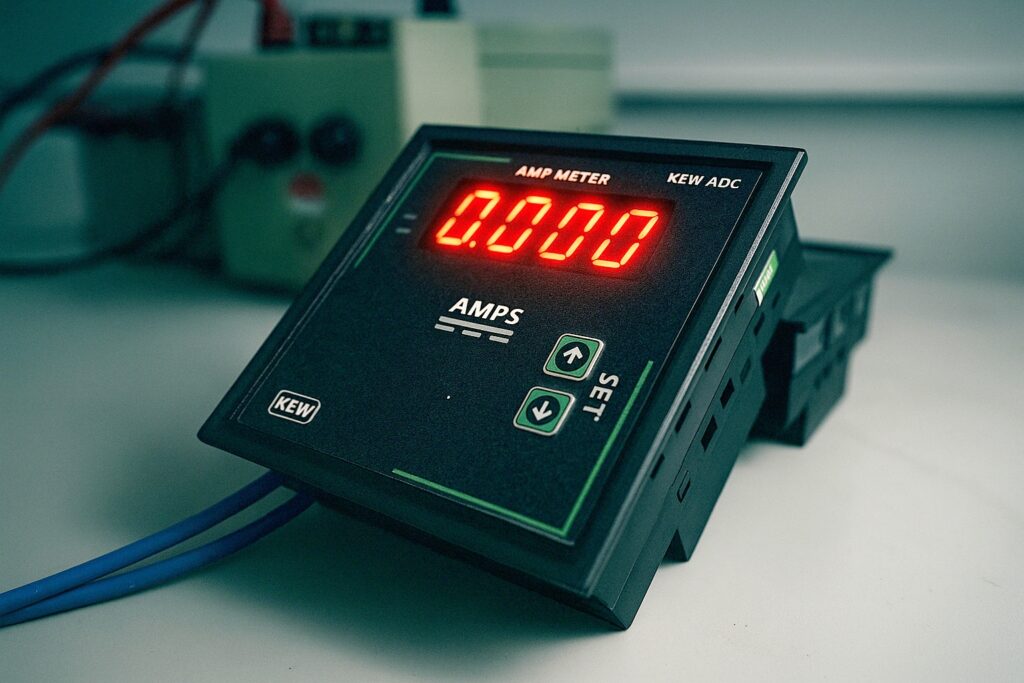

DC Ammeter

Display :7-Segment 4-Digit LED Display
Range's : 0-20A (Direct) and 0- 75mV & 0-60mV via Shunt Programmable from 1A to 50kA.
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 0.5-1
Size(mm): 96*96, 72*72, 48*96 and customisable

DC Digital Advance Series

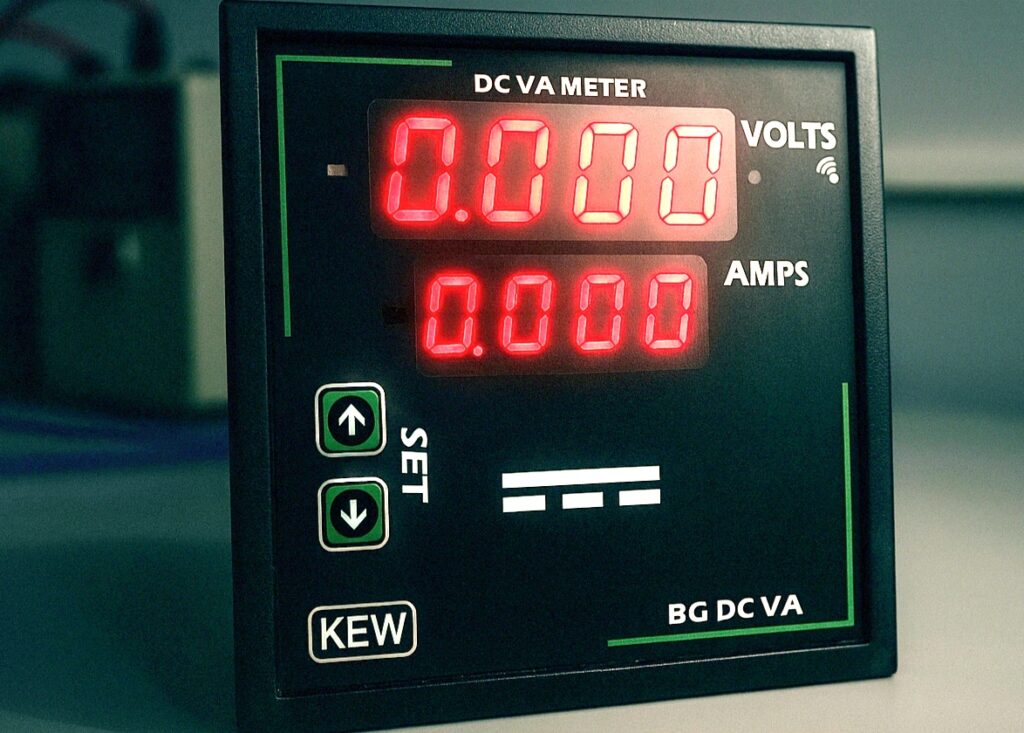

DC VA Meters

Display :7-Segment 4-Digit LED Individual Display for Volt+Ampere
Voltage Range: 0-750V DC and wide ranges
Current Range : 0-20A (Direct) and 0- 75mV & 0-60mV via Shunt Programmable from 1A to 50kA.
Auxilary Voltage: 45-230V AC/DC and customisable
Accuracy Class: 0.5-1
Size(mm): 96*96, 72*72, 48*96 and customisable

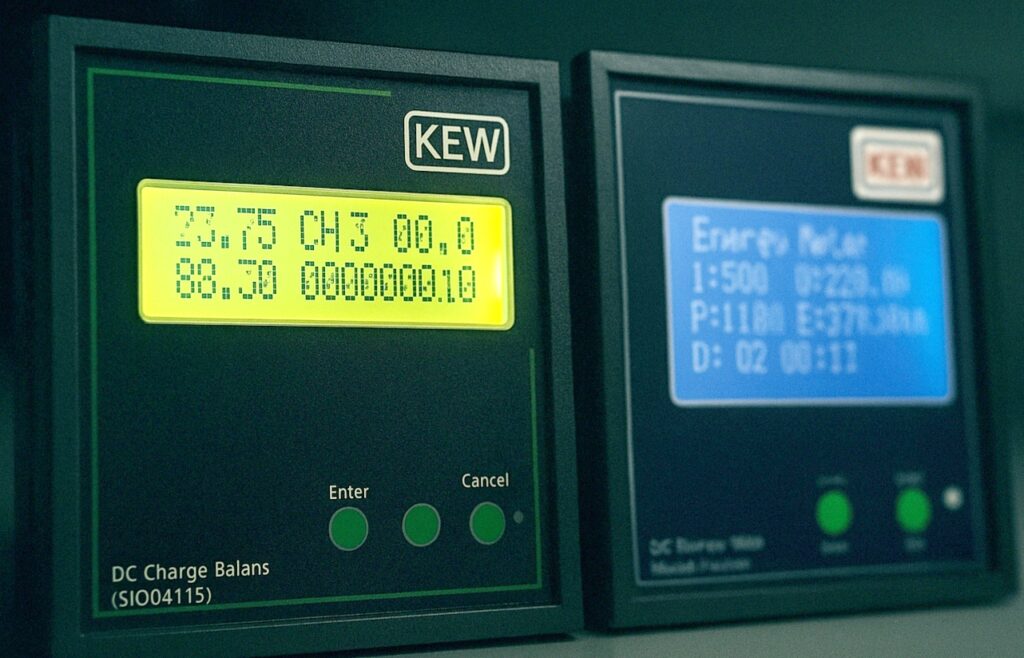

DC Digital Energy Meter

DC energy Meter ( Four Channel)
